24 · Applications

The drawing is the brand, too.

Our CAD sheets go to customers and to every fabricator we use. This page sets one SolidWorks drawing template, one title block and one set of fields.

24.1

Today's sheets.

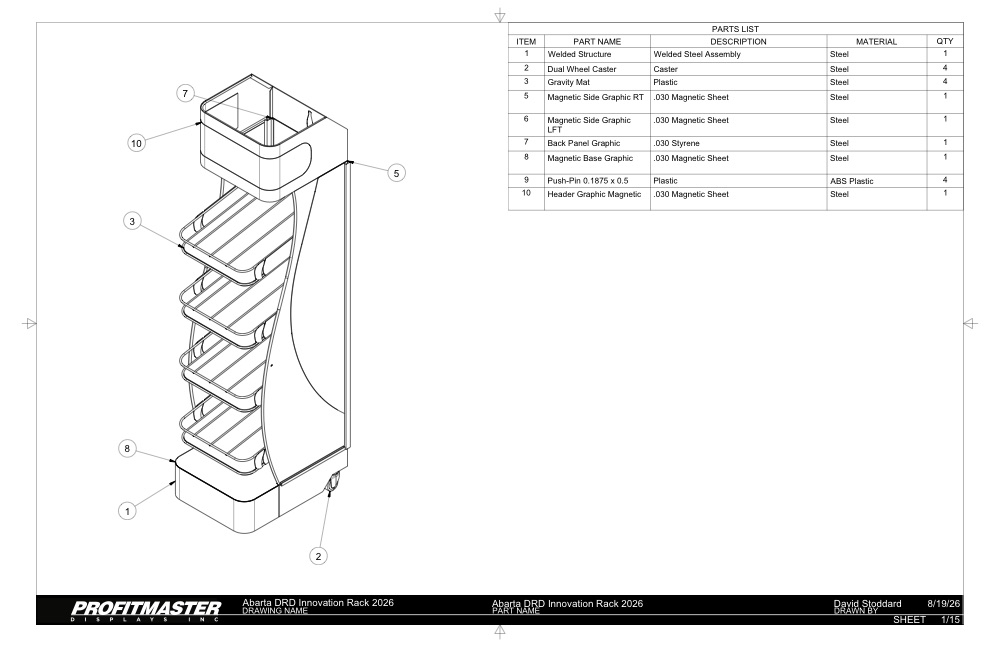

Assembly drawing of a four-shelf rack with balloon callouts, parts list and black title bar — **Assembly sheet**Isometric · balloons · parts list

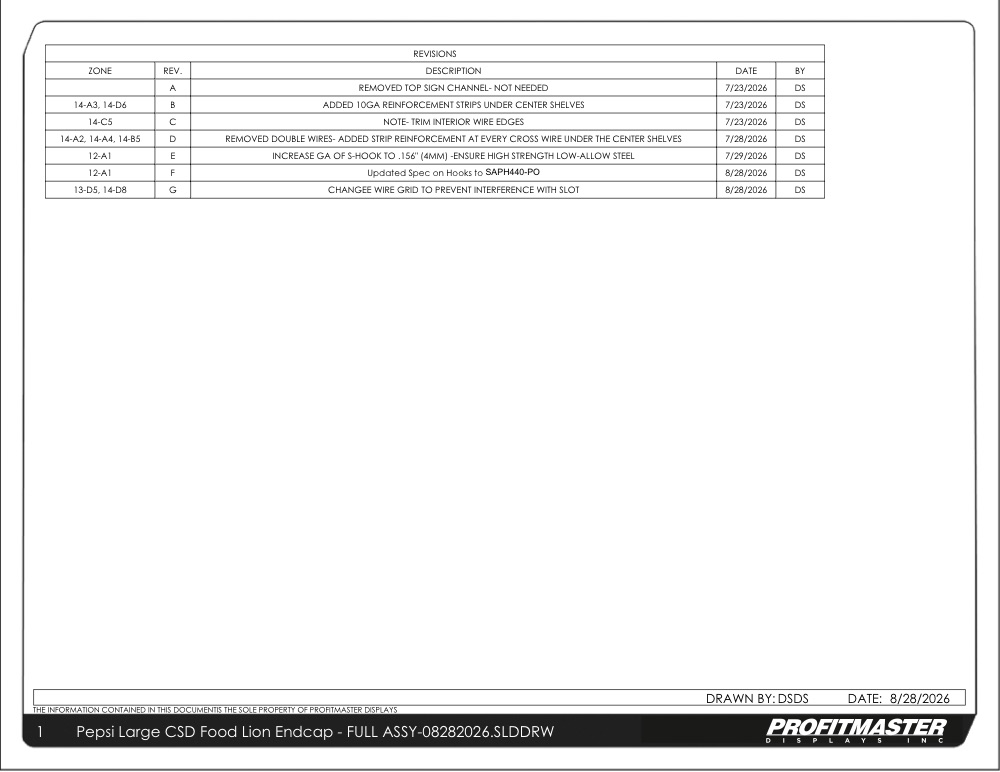

Drawing sheet with revision table and title strip — **Revision sheet**Revision table · title strip

About 25 template revisions exist from 2016 to 2024, with no naming discipline. The 2023 set is the newest. These standards replace all of them with one.

24.2

The title block.

Drawing name

Program · display name

Part / assembly

Part name

Customer

Bottler

Scale

1 : 8

Rev

Sheet

2 / 5

File

S-code_Program_Part_RevC.SLDDRW

Drawn by · date

DS · 2026-08-19

Checked by

—

Tolerance unless noted

Per drawing notes

Proprietary. The information in this document is the sole property of Profitmaster Displays, Inc.

Title blockBottom right of every sheetValues shown are examples

24.3

Fields and rules.

Field	Today	Standard
Drawing name, part, drawn by, date, sheet	Present	Keep
Revision table (zone, rev, description, date, by)	Present	Keep, top right
Parts list (item, part, description, material, qty)	Present	Keep, above the title block
Scale	Missing	Add
Checked by	Missing	Add
Customer	Missing	Add
Tolerance note	Missing	Add
Proprietary notice	Has a typo ("DOCUMENTIS")	Fix spelling
Logo	Speed-line version	2026 wordmark, black

24.4

The drawing sheet.

Template: PMD Drawing 2026.DRWDOT and PMD Sheet Format 2026.slddrt To build
Standard: ANSI, inches. Scales 1:1 to 1:20, 2:1, 4:1
Sheet sizes: Letter landscape for customer sheets; B size (11 × 17 in) for vendor packages
Border: 0.5 pt, square corners, zone ticks
Type: Arial throughout, for file compatibility with vendors
Views: Isometric first for customers; orthographic with dimensions for vendors
Callouts: Numbered balloons matched to the parts list
File name: S-code_Program_Part_Rev.SLDDRW, no spaces
No texture: Never put the schematic texture on a real drawing
